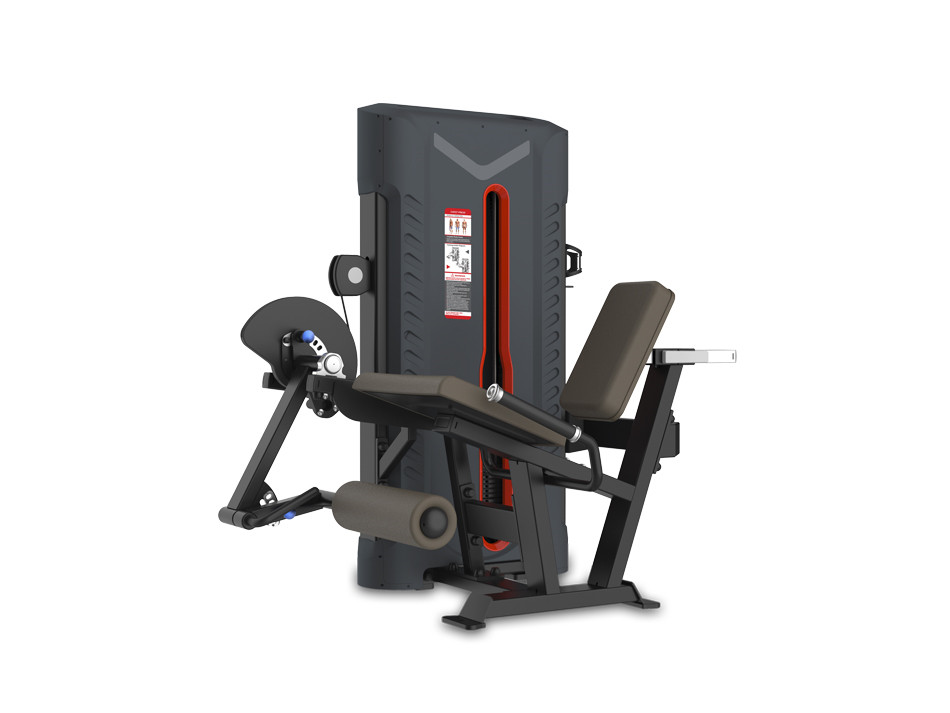

• CM-2103 Leg Extension

CM-2103 Leg Extension

1.Pipe material: The counterweight frame is made of high-quality rectangular steel pipe 120*50mm, and the main frame is made of high-quality rectangular steel pipe 100*50mm, with a thickness of 3mm.

2.Guard: ABS fully enclosed streamlined door assembly is adopted to maximize the safety of users and others

3.Appearance: Equipped with ABS screw cap and pulley block cover, the whole machine is more concise and beautiful

4.Guide rod: high hardness, high-gloss chrome plating: 19mm in diameter

5.Counterweight: cold-rolled steel counterweight piece, weight 110kg

6.Bolt: high-hardness, high-gloss chrome plated, 8mm diameter counterweight bolt

7.Handle: made of high toughness PVC material, aluminum alloy sealing cap, round and comfortable

8.Adjustment: the seat cushion has multiple positions and height adjustable

9.Soft bag: seat cushion and back cushion use one-time forming sponge foaming process to prevent deformation

10.Bracket: equipped with a bottle cage with an inner diameter of 78mm

11.Transmission: use maintenance-free and self-lubricating steel wire rope with a diameter of 6mm, and high-quality universal joint                                      12.connection with the frame to extend the service life of the wire rope

13.Pulley: Made of high-quality fiber reinforced U-shaped nylon non-slip, anti-falling, precision bearing pulley, diameter 105mm

14.Foot pad: The foot pad is made of rubber material, the thickness is 20mm, and it has the function of shock absorption.

15.Description: The body has fitness instruction stickers and warning stickers

16.Track: The product adopts an ergonomic movement structure to make the movement closer to the direction of muscle contraction, and more scientifically and effectively to ensure the training effect

Share:

Product Description

SPECS

Product Length:57.87 " (147cm)

Product Width: 40.94" (104 cm)

Product Height: 60.24" (153 cm)

Machine Weight: 551.16 lbs. (250kg)

Gross Weight: 619.50 lbs. (281kg)

Weight Stack: 242.51 lbs. (110 kg)



Packaging Information

Length: 66.14" (168cm)

Width:42.52" (108 cm)

Height: 15.75" (40cm)

Volume: 0.73 ( m³)
