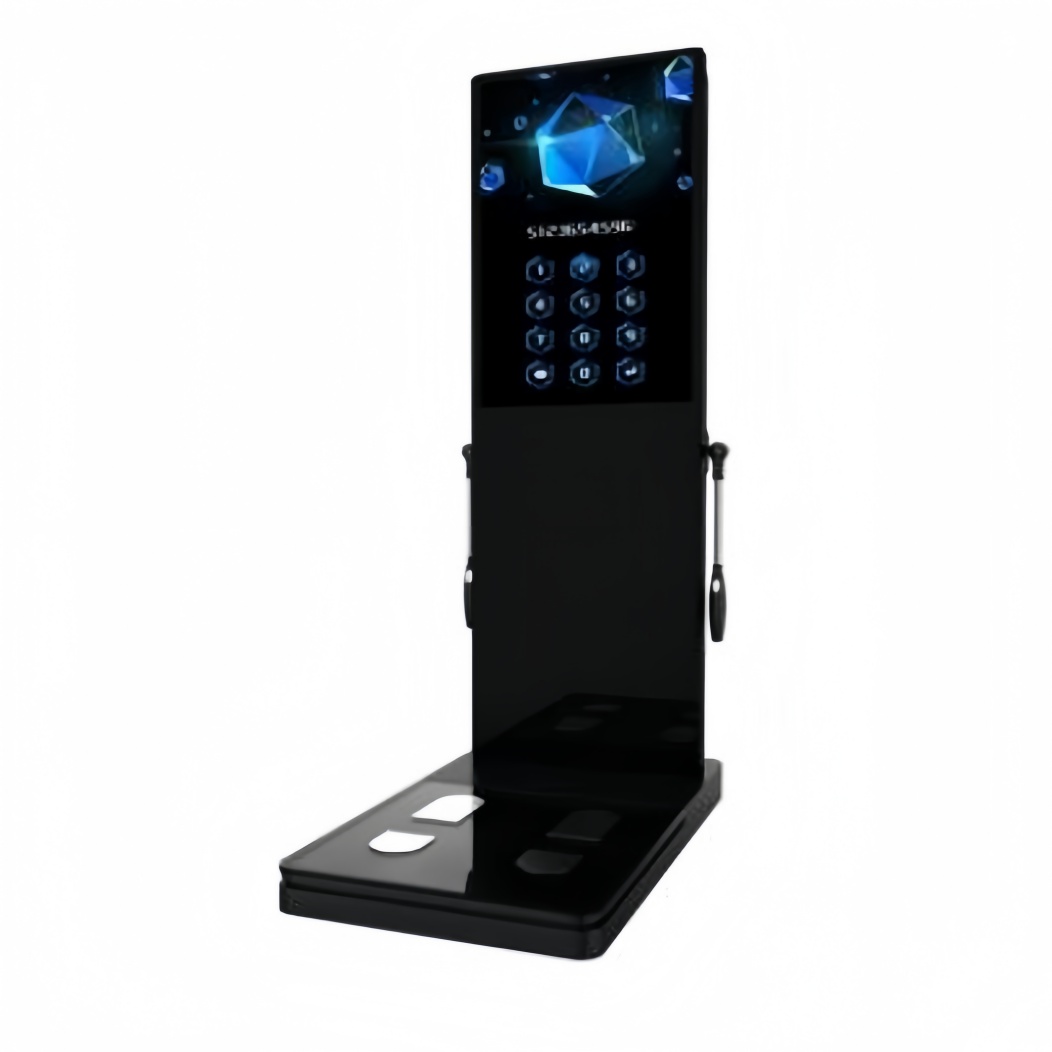

CM-714D L7 SMART BODYANALYZER

CORE PARAMETER

MEASUREMENT METHOD:

eight electrodes, multi-frequency, multi-segment, bioelectrical impedance measurement method

TEST FREQUENCY BAND: 20, 100KHZ

TEST AGE: 3-99 years old

TEST WEIGHT: 0-300kg

TEST HEIGHT: 100-200cm

TEST CURRENT: about 280uA

TEST INDICATORS:

Body weight, body fat percentage, inorganic salts, skeletal muscle, subcutaneous fat, visceralfat grade, protein, body moisture, segmental fat, segmental muscle, bone mass, BMl, body fat, body age, idealweight, form determination, high and low shoulders, XO legs, pelvis forward, hunchback, partial neck, basalmetabolism, etc...                                                                     EQUIPMENT PARAMETER

HD SCREEN: 32 INCHES

DEVICE SIZE: HOST: 1690MM (HEIGHT)*465MM (WIDTH)*70MM (THICKNESS)

BASE: 8OMM (HEIGHT)*470MM (WIDTH) *840MM (LENGTH)

PACKAGE SIZE: HOST: 1822MM (L)*220MM (W)*720MM (H)

BASE: 950MM (L)*590MM (H)*190MM (W)

WEIGHT:APPROX.73KG

INPUT VOLTAGE: 110-220V

SUPPORT NETWORK: BOTH WIRED AND WIRELESSCOMPATIBLE PRINTERS: DESIGNATED HP 1212,519,8210

ACQUISITION MODULE: 3D HD DYNAMIC DEPTH OF FIELD MODULEMVITAL

CAPACITY KIT/HIGH-FREQUENCY ULTRASOUND MODULE

DEVICE INTERACTION: FULL TOUCH SCREEN HUMAN-COMPUTER INTERACTIONTEST ENVIRONMENT: TEMPERATURE 10-40 DEGREES CELSIUS, HUMIDITY 75% (NO CONDENSATION)
