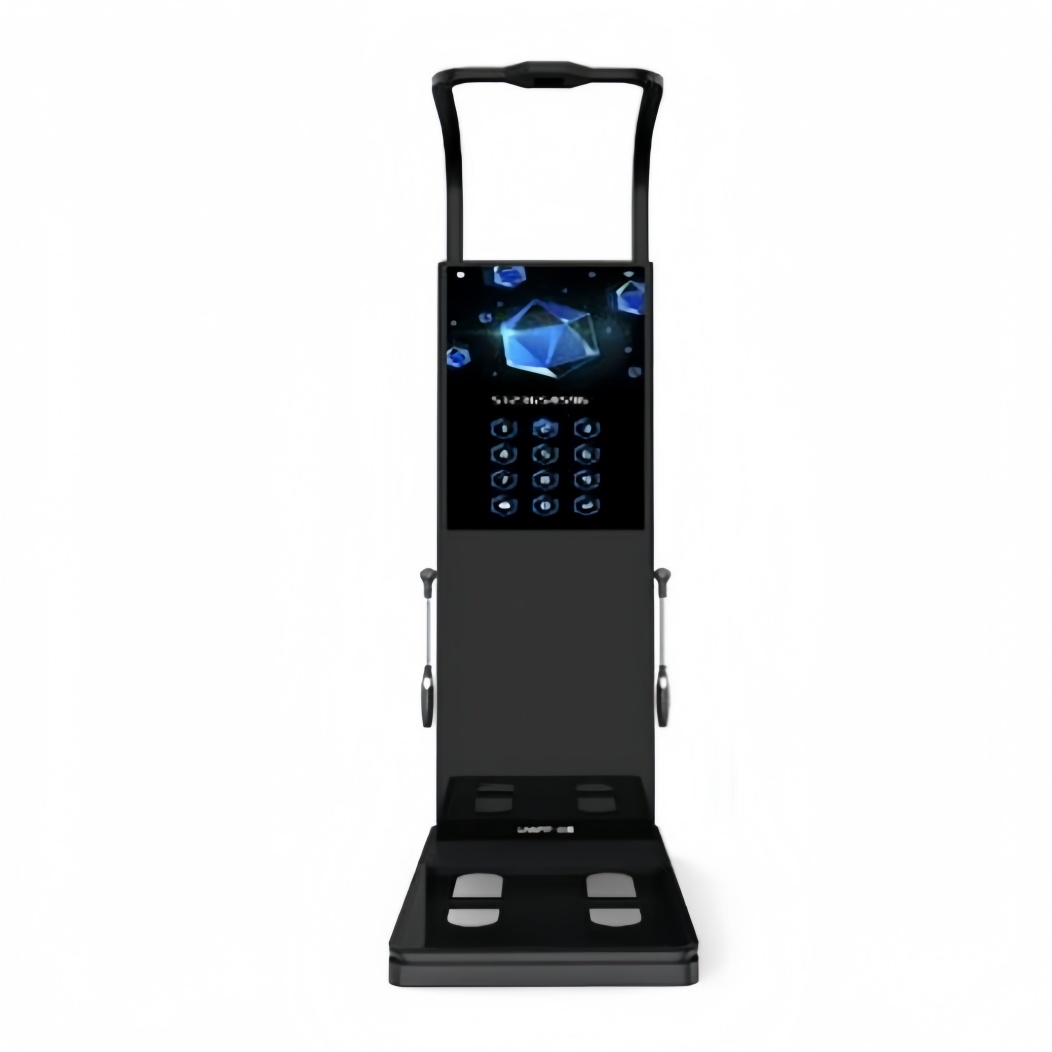

CM-714E L9 SMART BODYANALYZER

CORE PARAMETER

MEASUREMENT METHOD:

eight electrodes, multi-frequency, multi-segment, bioelectmpedance measurement method

TEST FREQUENCY BAND: 20, 100KHZ

TEST AGE: 3-99 years old

TEST WEIGHT: 0-300kg

TEST HEIGHT: 100-200cm

TEST CURRENT: about 280uA

TEST INDICATORS:

Body weight, height, body fat percentage, inorganic salts, skeletal muscle, subcutaneous fat, visceral fat grade,protein, body moisture, segmental fat, segmental muscle, bone mass, BMl, body fat, body age, ideal weight, bloodpressure, static heart rate, blood oxygen concentration, fom determination, high and low shoulders, X/O legs,pelvis forward, hunchback, partial neck, cardiopulmonary function assessment, balance ability Evaluation, quickreaction ability, 1 minute jump rope test, naked eye vision evaluation, basal metabolism, etc...                                         EQUIPMENT PARAMETER

HD SCREEN: 32 INCHES

DEVICE SIZE: HOST: 1690MM (HEIGHT)*465MM (WIDTH)*70MM (THICKNESS)

BASE: 8OMM (HEIGHT)*470MM (WIDTH)*840MM (LENGTH)SUPPORT: 610MM (HEIGHT)*430MM (WIDTH) *590 (LENGTH)

PACKAGE SIZE: HOST: 1822MM (L)*220MM (W)*720MM (H)BASE: 950MM (L)*590MM (H)*190MM (W)

SUPPORT: 650MM (LENGTH)*500MM (WIDTH)*650MM (HEIGHT)WEIGHT: APPROX.78KG

INPUT VOLTAGE: 110-220V

SUPPORT NETWORK: BOTH WIRED AND WIRELESS

COMPATIBLE PRINTERS: DESIGNATED HP 1212, 519, 8210

ACQUISITION MODULE: 3D HD DYNAMIC DEPTH OF FIELD MODULENVITALCAPACITY KIT/HIGH-FREQUENCY ULTRASOUND MODULEDEVICE INTERACTION: FULL TOUCH SCREEN HUMAN-COMPUTER INTERACTION

TEST ENVIRONMENT: TEMPERATURE 10-40 DEGREES CELSIUS, HUMIDITY 75% (NO CONDENSATION)
